Static File Share with Flask and Caddy

This guide will show you how to deploy a basic file-sharing site on Code Capsules. You'll use a Flask application to upload files and a Caddy file server to serve and download the uploaded files.

We'll use three capsules: a Data Capsule to store the files, a Backend Capsule for the Flask upload server, and a Docker Capsule for the Caddy file server.

After following the guide, you'll be able to upload files in the Flask application, see a file listing, and get public links to your uploaded files in the Caddy application, as shown below.

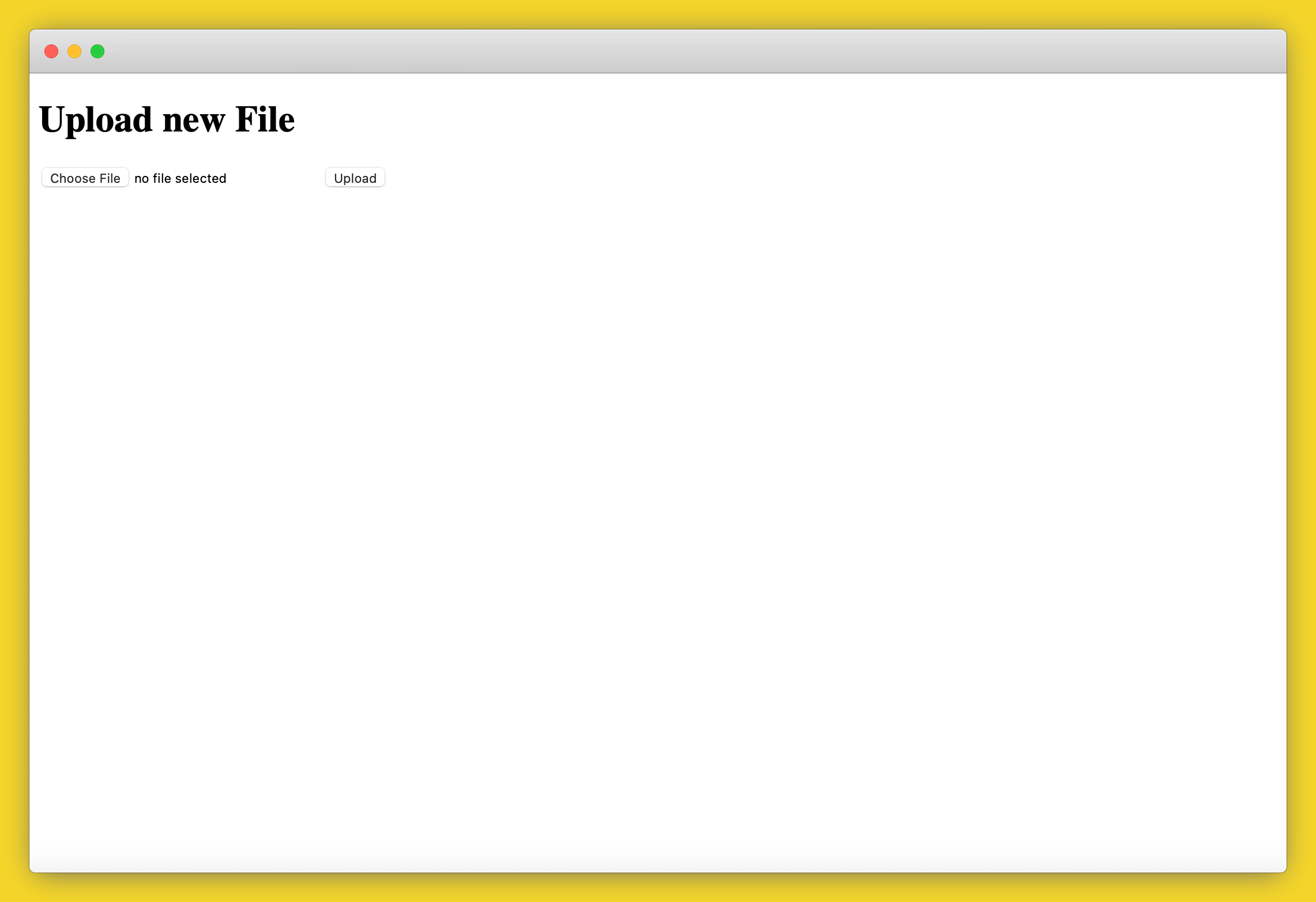

Flask upload server and Caddy file server

Setup

Code Capsules connects to GitHub repositories to deploy applications. To follow this guide, you'll need a Code Capsules account and a GitHub account.

The code you need for this guide is in the following GitHub projects.

• Flask file uploads

• Caddy file server

Sign in to GitHub, and fork both example applications by clicking Fork at the top right of your screen and selecting your GitHub account as the destination.

Create a Space for Your App

Log in to your Code Capsules account and navigate to the Spaces tab. Once there, click the yellow + icon on the top right of the screen to add a new Space.

Follow the prompts, choosing your region and giving your Space a name, then click Create Space.

Create a Space

1. Choose a Team — you can use a default personal Team if you're the only person working on this project, or a named Team if you're collaborating with others

2. This should remind you of the project, for example, customer-api or notetaking-app

3. Choose a country close to where most of your users will be

Create the Capsule

A Capsule provides the server for hosting an application on Code Capsules.

Navigate to the Capsules tab. Once there, click the yellow + icon on the bottom left of the screen to add a new Capsule.

Data Capsule

To create a new Data Capsule for your Space, follow the instructions below:

1. Choose Persistent Storage, your Team, and Space.

2. Choose your payment plan.

3. Click Create Capsule.

Backend Capsule

Navigate to the Space containing your recently created Data Capsule and click the yellow + icon on the bottom left of the screen. Follow the instructions below to create a Backend Capsule:

1. Choose Backend Capsule, your Team, and Space.

2. Choose your payment plan.

3. Select the flask-file-uploads repository you forked at the start of the tutorial.

4. Choose the GitHub repository you forked.

5. Press Next.

6. Leave Run Command blank.

7. Click Create Capsule.

Docker Capsule

Click the New capsule button again.

1. Choose Docker Capsule

2. Select the caddy-file-server repository

3. Click Next

4. Enter Dockerfile for the Dockefile location

5. Press Create Capsule

Code Capsules will automatically build your application when you've finished creating the Capsule. While the build is in progress, you can view the log by clicking View Build Progress next to the Building Capsule message.

Once your application is live, you can view the build log by selecting the Deploy tab and clicking the View build log link in the Builds section.

Build Log

Binding the Capsules

Now navigate to each of the Backend Capsule and Docker Capsule and bind them to the Data Capsule. This gives them access to a shared file store so that the Flask application can upload files and the Caddy server can serve them to users.

View Application

Once the build is complete, click the URL link in the Config tab, and you should see your deployed application.

If you’d like to deploy another application in a different language or framework, take a look at our other deployment guides.
